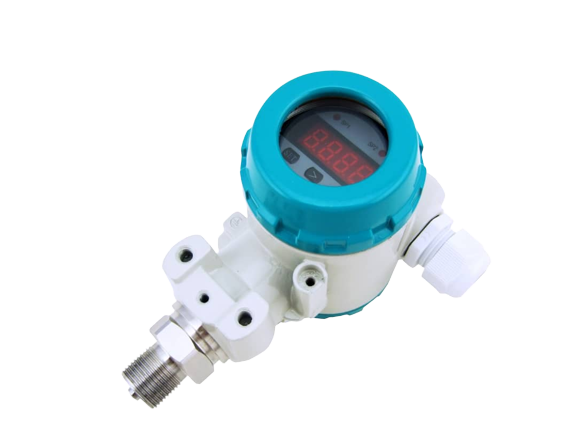

MSPT100 Smart pressure transmitter equipped high quality diffused silicon sensor and Industrial anti explosion enclosure. Its output and display stable enough, used in harsh environment in petroleum and chemical engineering
| Pressure range | -0.1 – 0 … 100 MPa |
| Stability | ±0.1% / Year |
| Overload capacity | 150 % Full scale |
| Power Supply | 12- 30VDC |
| Protection Grade | IP65 |
| Accuracy | ±0.25% Full scale |
| Working Temperature | -20°C to 80 °C |
| Process Fluid | Liquiid, Gas, Vapor, Oil |
| Process connection | G ½’’ /M20X1.5 |
| Diaphragm Material | SS316L |
| Housing Material | Aluminum Aloy |
| Output | 4-20mA/RS 485 |
| Display | LCD/LED |
